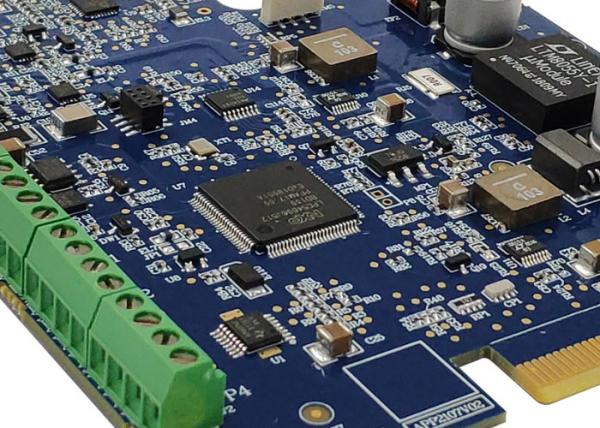

    FR4 Pcb Assembly Services Electronic Blue Pcba Printed Circuit Board Assembly Companies

    Ask Lasest Price
    Brand Name : kerongda
    Model Number : KRD-EMSPCBA02
    Certification : CE
    Price : USD0.01~0.1/dot
    Payment Terms : L/C, T/T
    Supply Ability : 40000dot/h
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    FR4 Pcb Assembly Services Electronic Blue Pcba Printed Circuit Board Assembly Companies

    Printed Circuit Board/Multilayer board/Single-side pcb

    Our Advantages:

    1. Program and functional test and package by Free.

    2. High quality: IPC-A-610E standard, E-test, X-ray, AOI test, QC, 100% functional test.

    3. Professional service: PCB/FPC/Aluminium Making, SMT, DIP, Component Sourcing, OEM with 21 years experience.

    4. Certifications: UL, 94v-0, CE, SGS, FCC, RoHS, ISO9001, ISO14001,IATF16949


    SMT


    The components will be mounted on the circuit board through SMT mounter, and online AOI automatic optical detection will be carried out if


    necessary. After testing, the perfect reflow furnace temperature curve is set to let the circuit board flow through reflow welding.


    DIP


    1,The process of DIP processing is: putting in the hole →AOI→ wave soldering → cutting pin →AOI→ correction → washing → quality inspection.


    2,After wave soldering, The products will be will scanned by AOI equipment to ensure that no error occurs.


    Turnkey PCBAPCB+components sourcing+assembly+package
    Assembly detailsSMT and Thru-hole, ISO lines
    Lead TimePrototype: 15 work days. Mass order: 20~25 work days
    Testing on productsFlying Probe Test, X-ray Inspection, AOI Test, functional test
    QuantityMin quantity: 1pcs. Prototype, small order, mass order, all OK
    Files we needPCB: Gerber files(CAM, PCB, PCBDOC)
    Files we needComponents: Bill of Materials(BOM list)
    Files we needAssembly: Pick-N-Place file
    PCB panel SizeMin size: 0.25*0.25 inches(6*6mm)
    Max size: 20*20 inches(500*500mm)
    PCB Solder TypeWater Soluble Solder Paste, RoHS lead free
    Components detailsPassive Down to 0201 size
    Components detailsBGA and VFBGA
    Components detailsLeadless Chip Carriers/CSP
    Components detailsDouble-sided SMT Assembly
    Components detailsFine Pitch to 0.8mils
    Components detailsBGA Repair and Reball
    Components detailsPart Removal and Replacement
    Component packageCut Tape,Tube,Reels,Loose Parts
    PCB assemblyDrilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing
